A UI Helper for youtube-dl

Related tags

UI UDownHelper
Overview

使用第三方框架:youtube-dl, aria2


使用教程(现在太累了,之后补充详细

  1. 安装homebrew:/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"
  2. 安装youtube-dl:brew install youtube-dl
  3. 安装aria2:brew install aria2
  4. 确保youtube-dl和aria2是安装在/usr/local/bin目录下,目前是写死的
  5. 快乐下载

已知问题

  • 成下载后CPU占用会飙升,正在排查 [解决方法](# 进程结束task的输出没有停止导致CPU占用过高)

学到的一些知识点:

  1. 打开文件选择框

    在本项目中,需要打开文件框来选择下载目录,这里使用的方法是NSOpenPanel

    关键代码如下

     panel.allowsMultipleSelection = false //不允许选择多项
     panel.canChooseDirectories = true //可以选择目录
     panel.canChooseFiles = false //不可以选择文件
     panel.directoryURL = URL(string: "~/Downloads") //设置默认打开文件路径为用户下载路径
     if panel.runModal() == .OK {
     	folderUrl = panel.url?.path ?? "~/Downloads" //返回文件夹path
     }
  2. 主线程与子线程の一些问题

    在之前制作SocketCS的时候,第一次接触到了DispatchQueue这个东西,当时没研究明白以为无脑DispatchQueue.main.async就完事了,但是制作这次项目的时候,因为需要联网下载视频,运行时间会比较长,我发现如果使用DispatchQueue.main.async的话,程序就会卡主不动。

    经过面向谷歌编程,我发现,问题的出现是因为我对这玩意的理解不透彻,总结来说,DispatchQueue里面有三种队列,分别是Main Queue、Global Queue、Custom Queue,main是主队列,串行运行的,与UI相关的所有操作都必须在main中完成。global是全局队列,并行运行的,运行在后台线程,是系统内共享的全局队列,custom是自定义队列,默认是串行的。

    在后台运行的子任务,如果想将数据推向UI,应使用DispatchQueue.main.async将数据传回主线程,样例如下

    DispatchQueue.global().async{
      //后台代码
      DispatchQueue.main.async{
        //后台运行代码结束后传回数据的代码放这里
      }
    }

    具体的介绍可以看这个链接:[一天精通iOS Swift多线程(GCD)

  3. 后台运行的脚本如何将控制台输出传回UI( ⭐️ 有大坑)

    因为这个项目本质上只是给youtube-dl包装了一个外壳,youtube-dl又是一个命令行程序,所以我想将youtube-dl运行时的控制台信息在SwiftUI中显示出来,程序运行的时候,我将控制台输出输出到pipe管道中,面向谷歌编程后,大概明白需要使用一段简单的代码

    DispatchQueue.main.async {
      ...
    	let pipe = Pipe()
    	task.standardOutput = pipe
    	let outHandle = pipe.fileHandleForReading
    	outHandle.readabilityHandler = { pipe in
          var line = String(data: pipe.availableData,encoding: .utf8)
          print(line)
      }
      do{
        try task.run()
      }catch{
        print("运行错误")
      }
    }


    readabilityHandler是OS X 10.7后开始提供的功能,可以读取管道中的实时内容。但是我在使用了这个代码之后,仍然没法Swift控制台中看到实时的信息,只有当整个下载流程结束之后,才会一次性将所有的信息打印出来,在折腾了一个多小时之后,我发现少写了一行代码……

       DispatchQueue.main.async {
         ...
       	let pipe = Pipe()
       	task.standardOutput = pipe
       	let outHandle = pipe.fileHandleForReading
       	outHandle.readabilityHandler = { pipe in
             var line = String(data: pipe.availableData,encoding: .utf8)
             print(line)
         }
         do{
           try task.run()
         }catch{
           print("运行错误")
         }
       }
       task.waitUntilExit()//←没有写这个就不会实时显示

    个人理解,如果没有使用waitUntilExit(),运行的脚本就会直接进入后台,从而readabilityHandler无法读取到脚本的控制台输出。

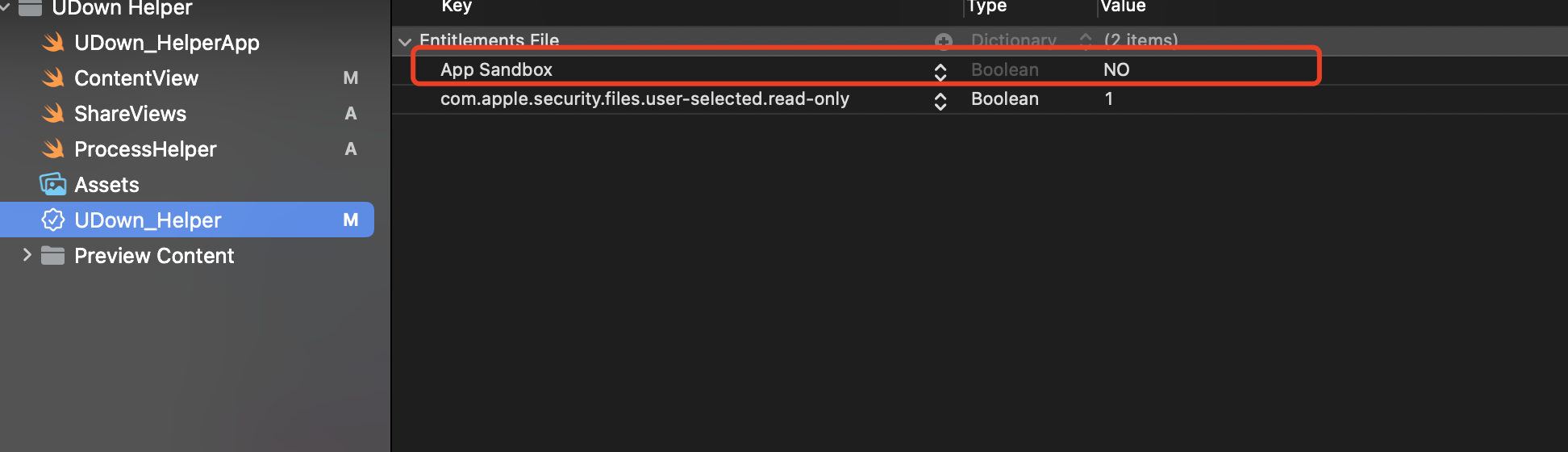

  4. 关闭App Sandbox

    关闭App Sandbox后的应用无法提交到App Store,但这问题不大,本身就只是小工具,如果不关闭沙盒的话,我的程序就没办法直接读取电脑中的内容,也就没办法控制youtube-dl程序进行下载了,所以,要在Entitlement文件中将该选项设置为关。


  5. 文件路径使用相对路径

    起初我的文件URL写成URL(fileURLWithPath:~/Downloads)时,程序会崩溃,但如果我指定绝对路径的话,就不方便程序的传播,经过修改,可以使用相对路径,如下

    URL(fileURLWithPath: (NSString(string:"~/Downloads").expandingTildeInPath))
  6. 适配深色模式

    最初我习惯用.preferredColorScheme(.light)来强制应用使用浅色模式,这种方式在iOS上蛮好用的,因为iOS应用都是全屏运行的,并不会有什么违和感,但是在mac上运行时,系统切换到了深色模式,应用还保留在浅色模式,会非常突兀,解决的方法也很简单,在Assets里添加ColorSet即可,可以为深色模式手动设定颜色,使用的时候使用以下样例即可

    .foregroundColor(Color("textColor"))//textColor是我给ColorSet起得名字


  7. 莫名其妙的环境变量引起的问题

    这个应用的基础功能是调用youtube-dl来下载视频,但关键核心其实是aria2外挂下载器来加速,但起初按照正确的命令配置后,下载的时候始终无法调用到aria2下载器加速,仍然是使用youtube-dl本身的下载功能,在琢磨了一整天仍然不知道为什么后,我尝试在代码中加入环境变量,没想到意外地解决了这个问题

    var environment =  ProcessInfo.processInfo.environment
    environment["PATH"] = "/usr/local/bin" //← youtube-dl和aria2c可执行程序所在的目录
    task.environment = environment


  8. 简单的用户配置存储

    我在程序里设置了默认下载目录为~/Downloads,但也许有用户会希望能更改默认存储位置,并希望下次程序启动的时候能记住此前的选择,这样就不用每次都选择目录了。这里选择了一个非常简单的方法,在SwiftUI2.0中提出了三种新的用于数据持久性的新属性包装器

    @AppStorage
    @StateObject
    @SceneStorage

    在本项目里使用的是@AppStorage,实现了能够保存用户下载目录和可执行文件路径的功能,在Stack Overflow上有一段解释,个人觉得讲的蛮清楚的SwiftUI: What is @AppStorage property wrapper

    简单来说,@AppStorage是一种很方便的方法用于从UserDefaults里读写数据,并且使用起来跟@State修饰符一样,当数据发生变化的时候它会自动将数据保存到UserDefaults中。代码举例来说:

    @State var dirUrl = NSString(string:"~/Downloads").expandingTildeInPath

    改成以下即可:

    @AppStorage("dirUrl") var dirUrl:String = NSString(string:"~/Downloads").expandingTildeInPath

    它的功能与以下代码等价:

    @State var dirUrl: String = NSString(string:"~/Downloads").expandingTildeInPath {
        get {
            UserDefaults.standard.string(forKey: "dirUrl")
        }
        set {
            UserDefaults.standard.set(newValue, forKey: "dirUrl")
        }
    }

    @AppStorage的行为与@State相似,当数据发生变化的时候,也会驱动UI界面重新绘制。默认情况下,@AppStorage会使用UserDefaults.standard来存储数据,但是你也可以自定义使用你自己的UserDefault存储。

  9. 进程结束task的输出没有停止导致CPU占用过高

经过很多次测试,最终猜测占用过高的原因可能跟控制台输出有关,注释掉输出部分的代码后,程序运行后不会再出现CPU占用过高的情况。控制台输出原本的代码如下:

task.standardOutput = pipe
let outHandle = pipe.fileHandleForReading
DispatchQueue.main.async {
    outHandle.readabilityHandler = { pipe in
        let line = String(data: pipe.availableData,encoding: .utf8)
            DispatchQueue.main.async {
                self.consoleOutput = line ?? "nil output"
            }
    }
    self.taskStack.append(taskTrack(process: task, taskType: opMode, runningType: runMode))
}

再次测试,发现当程序结束之后,管道的readabilityHandler仍然在不断地读取内容,导致CPU占用过高,所以应该要在程序停止后释放。

最终改成如下:

DispatchQueue.main.async {
    outHandle.readabilityHandler = { pipe in
        let line = String(data: pipe.availableData,encoding: .utf8)
        if task.isRunning {
            DispatchQueue.main.async {
                self.consoleOutput = line ?? "nil output"
            }
        }else{
            outHandle.readabilityHandler = nil //释放
        }
    }
    self.taskStack.append(taskTrack(process: task, taskType: opMode, runningType: runMode))
}

免责声明

  • 本软件只是个UI,请合法使用,仅供个人学习与交流使用,严禁用于商业以及不良用途。
  • 如有发现任何商业行为以及不良用途,软件作者有权撤销使用权。
  • 使用本软件所存在的风险将完全由其本人承担,软件作者不承担任何责任。
  • 因不当使用本软件而导致的任何意外、疏忽、合约毁坏、诽谤、版权或其他知识产权侵犯及其所造成的任何损失,本软件作者概不负责,亦不承担任何法律责任。
  • 本声明未涉及的问题请参见国家有关法律法规,当本声明与国家有关法律法规冲突时,以国家法律法规为准。
  • 本软件相关声明版权及其修改权、更新权和最终解释权均属软件作者所有。
