DeepInfant

DeepInfant® is a Neural network system designed to predict whether and why your baby is crying.

DeepInfant uses artificial intelligence and machine learning algorithms to determine which acoustic features are associated with which one of baby's needs.

For example, babies who are in pain demonstrate cries with high energy, while a fussy cry may have more periods of silence. We are preparing our findings for academic review and publication within a single well trained model based on academic datasets.

Summary

DeepInfant is a machine learning model that uses arts of artificial intelligence to predict your baby's needs based on sound classification of cries.

Dataset

DeepInfant has used as part of final project in Speech Technology Course in KTH (Royal Institute of Technology Sweden)

iOS Models

This repo is published with pre-trained CoreML Models.

• DeepInfant_VGGish
• DeepInfant_AFP

iOS and iPadOS App

This repo contains an example of using DeepInfant_VGGish model to build an iOS app that analyzes baby's cry sound with and push a prediction results with a tip of how to deal with each predicted result.

Building a model

The audio clips have a sample rate of 16000 Hz and a duration of about ~7 secs. This means there are about 16000*7 numbers per second representing the audio data. We take a fast fourier transform (FFT) of a 2048 sample window, slide it by 512 samples and repeat the process of the 7 sec clip. The resulting representation can be shown as a 2D image and is called a Short-Time Fourier Transform (STFT). Since humans perceive sound on a logarithmic scale, we’ll convert the STFT to the mel scale. The librosa library lets us load an audio file and convert it to a melspectrogram

import librosa
import librosa.display

fname = 'test-1-audio001.wav'
samples, sample_rate = librosa.load(fname)
fig = plt.figure(figsize=[4,4])
ax = fig.add_subplot(111)
ax.axes.get_xaxis().set_visible(False)
ax.axes.get_yaxis().set_visible(False)
ax.set_frame_on(False)
S = librosa.feature.melspectrogram(y=samples, sr=sample_rate)
librosa.display.specshow(librosa.power_to_db(S, ref=np.max))

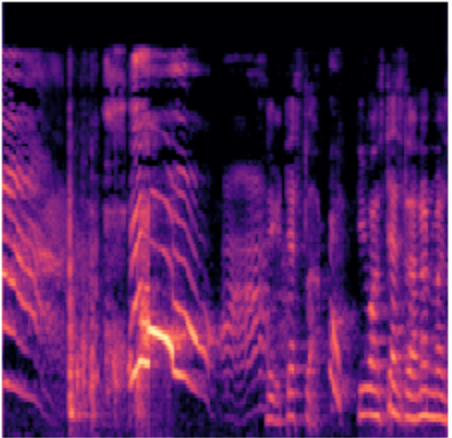

The melspectrogram of a baby crying looks like the image below

In order to build the spectrograms of the audio samples needed for training the model, we’ll be using the fantastic audio loader module for fastai v1 built by Jason Hartquist.

n_fft = 2048 # output of fft will have shape [1024 x n_frames]
n_hop = 512 # 50% overlap between frames
n_mels = 128 # compress 2048 dimensions to 128 via mel frequency scale
sample_rate = 16000
tfms = get_frequency_batch_transforms(n_fft=n_fft, n_hop=n_hop,
              n_mels=n_mels, sample_rate=sample_rate)
batch_size = 64
data = (AudioItemList.from_folder(CRYING_PATH)
     .split_by_folder()
     .label_from_folder()
     .databunch(bs=batch_size, tfms=tfms, equal_lengths=False))
learn = create_cnn(data, models.resnet34, metrics=accuracy)
learn.lr_find(start_lr=0.001, end_lr=1)
learn.recorder.plot()

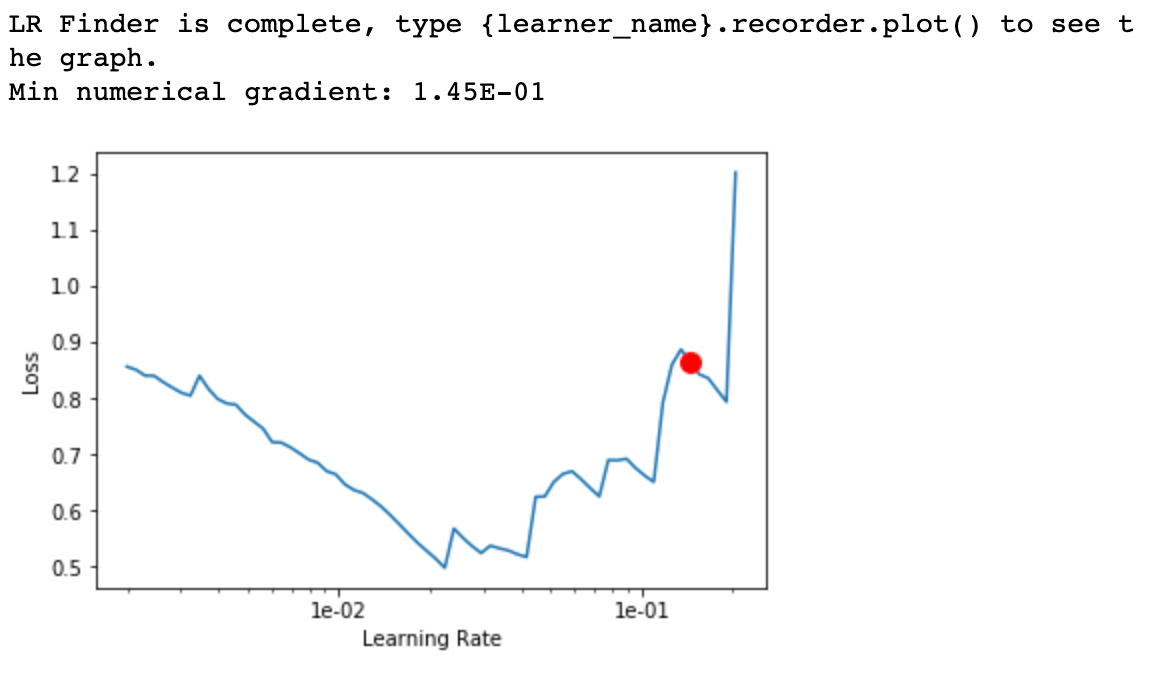

Fastai’s cyclical learning rate finder runs the model against a small batch of training samples to find a good learning rate.

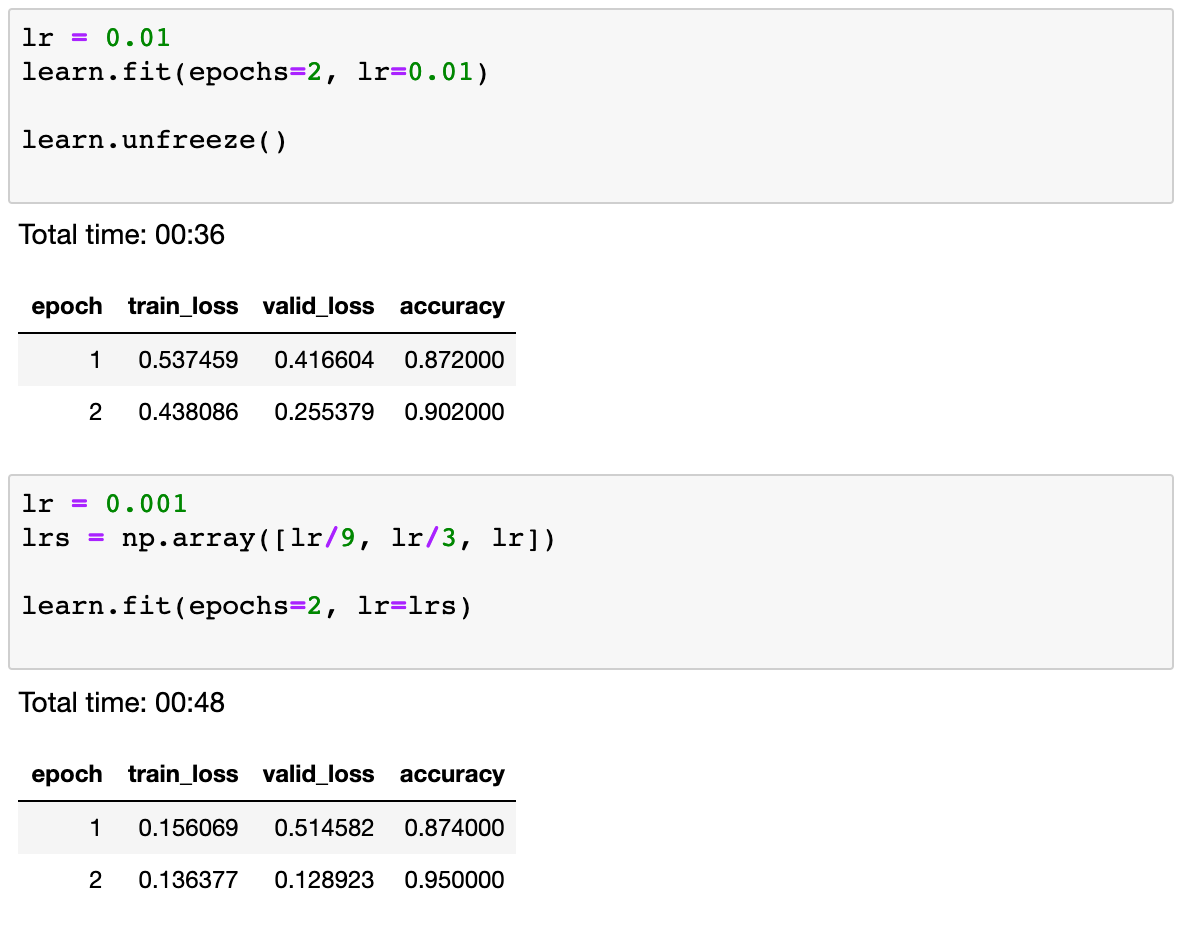

As the learning rate increases to 10e-2, you can see the model loss decrease. However, for higher learning rates, the loss begins to increase. Hence we pick 10e-2 as the learning rate for training the model. After training the model over a few epochs, we see an accuracy of 95% over the validation set

Predicting over realtime audio samples

Now that we have a really good model, in order to use it in a real application, we need to be able to run predictions over an audio stream in real time.

We use the pyaudio library to read audio samples from the device microphone and then convert the audio data into numpy arrays and feed it to the model.

while True:
frames = [] # A python-list of chunks(numpy.ndarray)
for _ in range(0, int(RATE / CHUNKSIZE * RECORD_SECONDS)):
    data = stream.read(CHUNKSIZE, exception_on_overflow=False)
    frames.append(np.fromstring(data, dtype=np.float32))
    npdata = np.hstack(frames)
    audio_clip = AudioClip.from_np(npdata, RATE)
    run_pred(audio_clip)

The above code reads a 7 sec audio clip from the microphone and loads that into memory. It converts it to a numpy array and runs the model on them to get a prediction. This simple piece of code is now ready to be deployed to a service or an embedded device and be used in real applications !

Convention

The audio files should contain baby cry samples, with the corresponding tagging information encoded in the filenames. The samples were tagged by the contributors themselves. So here's how to parse the filenames.

iOS:

0D1AD73E-4C5E-45F3-85C4-9A3CB71E8856-1430742197-1.0-m-04-hu.caf

app instance uuid (36 chars)-unix epoch timestamp-app version-gender-age-reason So, the above translates to:

the sample was recorded with the app instance having the unique id 0D1AD73E-4C5E-45F3-85C4-9A3CB71E8856. These ids are generated upon installation, so they identify an installed instance, not a device or a user the recording was made at 1430742197 (unix time epoch) , which translates to Mon, 04 May 2015 12:23:17 GMT

version 1.0 of the mobile app was used, the user tagged the recording to be of a boy, the baby is 0-4 weeks old according to the user, the suspected reason of the cry is hunger

Android:

0c8f14a9-6999-485b-97a2-913c1cbf099c-1431028888092-1.7-m-26-sc.3gp

The structure is the same with the exception that the unix epoch timestamp is in milliseconds

Tags

Gender

• m - male
• f - female

Age

• 04 - 0 to 4 weeks old
• 48 - 4 to 8 weeks old
• 26 - 2 to 6 months old
• 72 - 7 month to 2 years old
• 22 - more than 2 years old

Reason

• hu - hungry
• bu - needs burping
• bp - belly pain
• dc - discomfort
• ti - tired

Contact

Please feel free to contact us if you need any further assistance.
